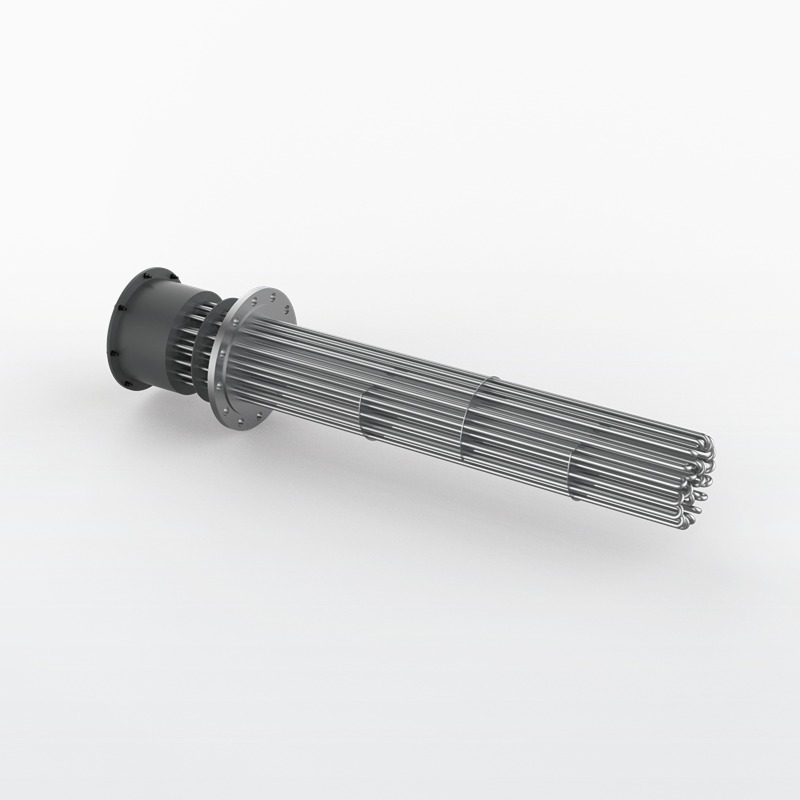

Flanged Immersion Heater
MODEL：ERH
POWER RATED：400V 3PH，50Hz
MEDIUM：Fluid & Gas
TEMP CONTROL RANGE：RT~800℃
TEMP CONTROL ACCURACY：±1℃
HEATING：ELECTRIC HEATING
TEMP CONTROL：SSR/SCR Thyristor
INTERACTION：PID Temp Controller/PLC+HMI
COLOR：Customizable
Inquiry
1
Our Flanged Immersion Heater is engineered for reliable and efficient indirect heating of liquids and gases in a wide range of industrial applications. Designed for easy installation and robust performance, these heaters provide direct heat transfer by being submerged directly into the medium within a pressurized vessel or tank.
APPLICATIONS
- Air Heating
- Chemical Reactors
- Boilers and Water Heating
- Parts Cleaning Solutions
- Lube Oil & Fuel Oil & Hydraulic Oil Heating
- Heat Transfer Oils
- Caustic Solution Heating
- Plating & Finishing Chemicals
- Water-Glycol Solution Heating
FEATURES
- Available custom sizes, wattages, and materials upon request
- Available SS304/SS316L/SS310S/Incoloy 800 sheath material
- Standard flange or customized flange, and materials upon request
- Available explosion and/or moisture resistant terminal enclosures upon request
TECHNICAL SPECIFICATION
- Surface load up to 10W/cm²
- Max working temperature up to 800℃
- Power supply customized upon request
- ∆ or Y electrical connections upon request
BENEFITS
- Easy to install
- Easy to control
- Easy to maintain
Notes: The heater could be entirely bespoke, we can design and tailor heating capacity, etc. to your specification.
